450H, 550H, 650H Crawler Dozer Products
| Part Number | Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions | List Price DS25 | |
|---|---|---|---|---|---|---|---|
| AT, ETN & BYT number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | |||||||
| Limb Risers (Sweeps) | |||||||

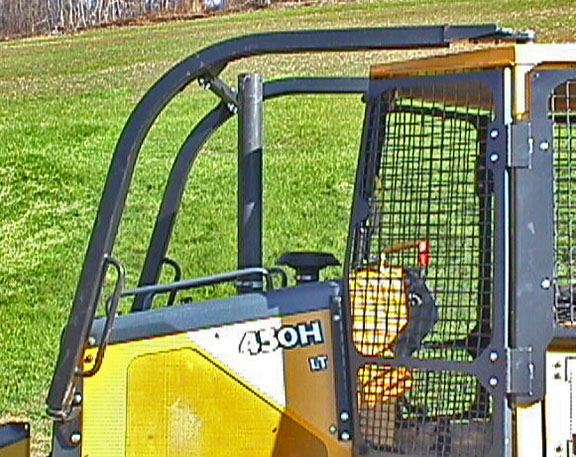

| 704215 | Limb Risers, Arched, Canopy and Cab | 450H, 550H, 650H | 310 | 4 |  | Login To See Price | Login To Add To Quote |
| Operator Rear Screens | |||||||
| 704329 |

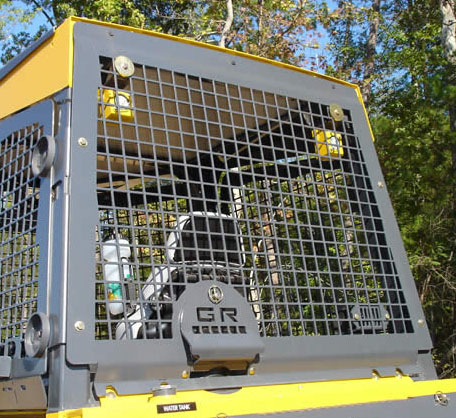

Rear Screen, Canopy
Notes: With fuel filler door Tested to ISO 8084 Standard |
450H, 550H, 650H | 50 | 2 | | Login To See Price | Login To Add To Quote |
| 704333 |

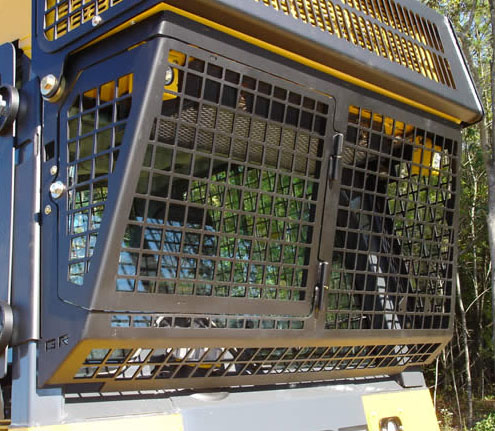

Rear Screen, Cab Notes: Hinged opening Tested to ISO 8084 Standard |
450H, 550H, 650H |
95 | 2 | | Login To See Price | Login To Add To Quote |
| Side Screens, Doors and Front Screen | |||||||
| 704330 |
Side Screens, Canopy Notes: Requires rear screen, Use WWM vs Cut Plate Tested to 8084 Standard |
450H, 550H, 650H | 100 | 2 | | Login To See Price | Login To Add To Quote |
| 704334 |
Side Screens, Cab Notes: Requires rear screen Tested to 8084 Standard |
450H, 550H, 650H |
95 | 3 | | Login To See Price | Login To Add To Quote |
| 704331 |

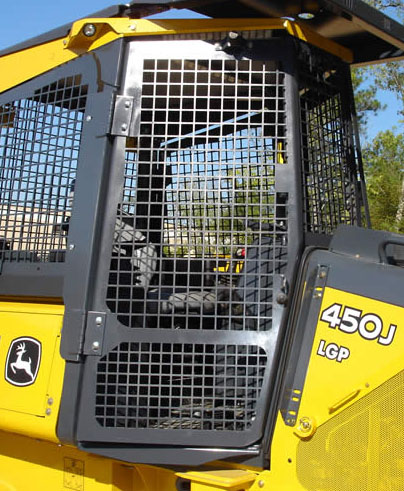

Operator Doors and Front Screen, Canopy Notes: Requires side screens Tested to ISO 8084 Standard |
450H, 550H, 650H | 200 | 4 | | Login To See Price | Login To Add To Quote |
| 704335 |
Operator Doors and Front Screen, Cab Notes: Requires side screens Tested to ISO 8084 Standard |
450H, 550H, 650H |
220 | 5 | | Login To See Price | Login To Add To Quote |
| Blade Rakes and Brush Guards | |||||||
| 705209 |
Blade Rake, Standard Duty, Pin On w/o Brush Gd. Notes: 114" OAL (8 teeth), For 115" Blades Only, AR400 Mat'.l Requires Heavy Duty C-Frame |
450H, 550H, 650H | 980 | 4 | | Login To See Price | Login To Add To Quote |
| 705188 |
Blade Rake, Standard Duty, Pin On with Brush Gd. Notes: 98" OAL (7 teeth), For 97" & 105" Blades Only, AR400 Mat'.l, Will not work w blade brush guard Requires Heavy Duty C-Frame |
450H, 550H, 650H | 1180 | 4 | | Login To See Price | Login To Add To Quote |
| 705189 |
Blade Rake, Standard Duty, Pin On with Brush Gd. Notes: 114" OAL (8 teeth), For 115" Blades Only, AR400 Mat'.l, Will not work with blade brush guard Requires Heavy Duty C-Frame |
450H, 550H, 650H | 1210 | 4 | | Login To See Price | Login To Add To Quote |
| Special Application Attachments | |||||||
| 704404 | Intake Guard | 450H, 550H, 650H | 12 | 1 | | Login To See Price | Login To Add To Quote |
| 704901 | Final Drive Seal Guards | 450H, 550H, 650H | 20 | 8 | | Login To See Price | Login To Add To Quote |
Last Update: July 2024
