450J, 550J, 650J Crawler Dozer Products
| Part Number | 450J, 550J & 650J Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions | List Price DS25 |
|---|---|---|---|---|---|---|
| AT, ETN & BYT part number kits must be crossed to John Deere part numbers and ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | ||||||
| Limb Risers (Sweeps) | ||||||
| 705132 |
Limb Risers, Point-to-Point, Cab and Canopy |
450J, 550J, 650J | 320 | 4 |
 |
Login To See Price |
| 704944 |
Limb Risers, Arched, Cab and Canopy |
450J, 550J, 650J | 310 | 4 |
|
Login To See Price |
| Operator Rear Screens | ||||||
| 704329 |
Rear Screen, Canopy Note: With fuel filler door |
450J, 550J, 650J | 50 | 2 |
|
Login To See Price |
| 704333 |
Rear Screen, Cab
Note: With hinged door |
450J, 550J, 650J |
95 | 2 |
|
Login To See Price |
| Side Screens, Doors and Front Screen | ||||||
| 704947 |
Side Screens, Canopy Note: Requires rear screen |
450J, 550J, 650J | 100 | 2 |
|
Login To See Price |
| 704929 |
Side Screens, Cab Notes: With hinged door Requires rear screen |
450J, 550J, 650J Cab |
95 | 3 |
|
Login To See Price |
| 704331 |
Operator Doors and Front Screen, Canopy Note: Requires side screens |
450J, 550J, 650J | 200 | 4 |
|
Login To See Price |
| 704946 |
Operator Doors and Front Screen, Cab
Note: Requires side screens |
450J, 550J, 650J |
180 | 5 |
|
Login To See Price |
| Blade Rakes and Brush Guards | ||||||
| AT353099 |
Blade Rake, Standard Duty, Pin On w/o Brush Gd. (GR#705209)
Notes: 114" OAL (8 teeth), For 115" Blades Only , AR400 Mat'l, Requires Heavy Duty C-Frame |
450J, 550J, 650J | 980 | 4 |
|
Login To See Price |
| AT369893 |
Blade Rake, Standard Duty, Pin On w/o Brush Gd. (GR#705301)
Notes: 114" OAL (8 teeth), For 124" Blades Only, AR400 Mat'l, Requires Heavy Duty C-Frame |
450J, 550J, 650J | 990 | 4 |
|
Login To See Price |
| AT343938 |
Blade Rake, Heavy Duty, Pin On with Brush Guard, (GR#705188)
Notes: 98" OAL (7 teeth), For 97" & 105" Blades Only, AR400 Mat'l, Will not work with blade brush guard Requires Heavy Duty C-Frame |
450J, 550J, 650J | 1180 | 4 |
|
Login To See Price |
| AT343939 |
Blade Rake, Heavy Duty, Pin On with Brush Guard, (GR#705189)
Notes: 114" OAL (8 teeth), For 115" Blade Only, AR400 Mat'l, Will not work with blade brush guard Requires Heavy Duty C-Frame |
450J, 550J, 650J | 1210 | 4 |
|
Login To See Price |
| AT369894 |
Blade Rake, Heavy Duty, Pin On with Brush Guard,
(GR#705302)
Notes: 114" OAL (8 teeth) for 124" Blade Only, AR400 Mat'l, Will not work with blade brush guard Requires Heavy Duty C-Frame |
450J, 550J, 650J | 1220 | 4 |
|
Login To See Price |
| 704981 |
C-Frame Reinforcement Kit - Required
Notes: Required for use with any blade rake used on heavy duty c - frames SN: 903159-xxxx |
450J, 550J, 650J | 306 | 8 |
|
Login To See Price |
| AT343937 |
Blade Brush Guard, 41" Width,
Grille Guard (GR#705184) Notes: Will not fit 124" blade SN:139433-xxxx |
450J, 550J, 650J | 98 | 2 |
|
Login To See Price |
| 704482 |
Blade Brush Guard, 41" Width Notes: SN: xxxx-139433 |
450J, 550J, 650J | 98 | 2 |
|
Login To See Price |
| AT343935 |
Blade Brush Guard, 81" Width (GR#705186)
Notes: For 90 - 97" blades SN:139433-xxxx |
450J, 550J, 650J | 126 | 3 |
|
Login To See Price |
| 704483 |
Blade Brush Guard, 80" Width
Notes: For 91" - 105" Blades SN: xxxx-139433 |
450J, 550J, 650J | 130 | 3 |
|
|
| AT343936 |
Blade Brush Guard, 92" Width (GR#705187)
Notes: For 105" Blades SN: 139433-xxxx |
450J, 550J, 650J | 140 | 3 |
|
Login To See Price |
| 704484 |
Blade Brush Guard, 105" Width
Notes: For 115" - 128" Blades SN: xxxx-139433 |
450J, 550J, 650J | 145 | 3 |
|
Login To See Price |
| AT364288 |
Blade Brush Guard, 102" Width (GR#705253)
Notes: For 115" Blades SN:139433-xxxx |
450J, 550J, 650J | 145 | 3 |
|
Login To See Price |
| Special Application Attachments | ||||||
| 705158 | Auxilliary Hydraulic Oil Cooler | 450J, 550J, 650J | 20 | 6 |
|
Login To See Price |
| AT446908 |
A/C Condenser Guard, Cab (GR#705721)
Notes: Requires Rear Screen SN: 150489-xxxx |
450J, 550J, 650J | 112 | 1 |
|
Login To See Price |

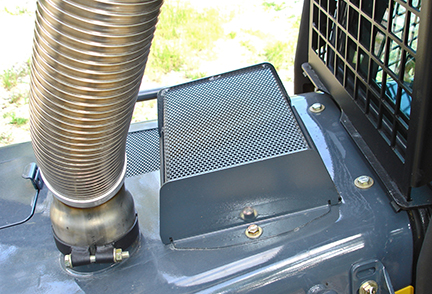

| 704404 | Intake Guard | 450J, 550J, 650J | 12 | 1 |
|
Login To See Price |
| 704999 | Lift Cylinder Guards | 450J, 550J, 650J | 16 | 1 |
|
Login To See Price |
| 704488 |
Tank Guard
Notes: Covers rear corners and rear of machine |
450J, 550J, 650J | 400 | 5 |
|
Login To See Price |
| 704901 | Final Drive Seal Guards | 450J, 550J, 650J | 20 | 8 |
|
Login To See Price |
Last Update: October 2022
