P-Tier Crawler Dozer Products
| Part Number | 450, 550, and 650 P-Tier Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions |
List Price DS25 |
|---|---|---|---|---|---|---|
| " BYT" part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | ||||||
| Full Enclosure Kits | ||||||
| BYT13517 | Full Enclosure Kit, Cab (GR#706497) | 450 - 550 | 1046 | 12 |  |
Login To See Price |
| BYT13532 | Full Enclosure Kit, Cab (GR#706498) | 650 | 1072 | 12 | |
Login To See Price |
| Limb Riser (Sweeps) | ||||||

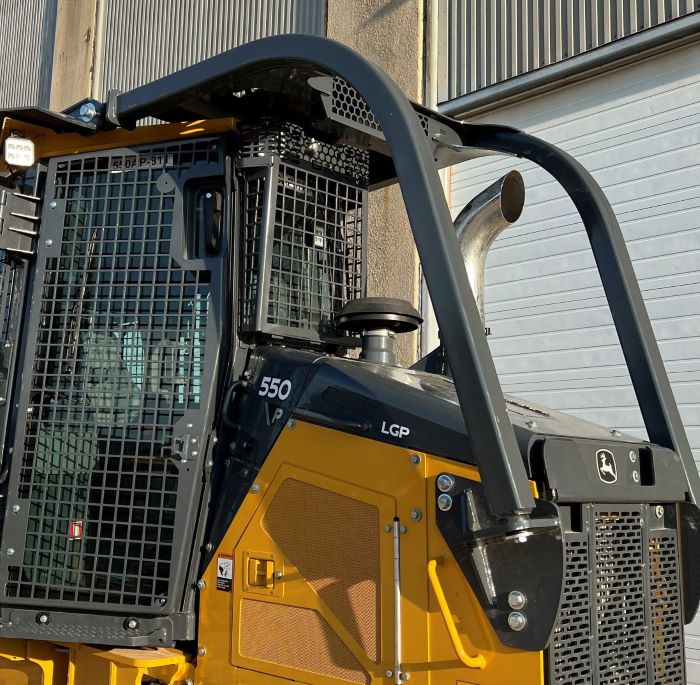

| BYT12453 | Limb Riser, Arched, Canopy & Cab (GR#706295) | 450 - 550 | 505 | 3 | |
Login To See Price |
| BYT12454 | Limb Riser, Arched, Canopy & Cab (GR#706294) | 650 | 530 |
3 | |
Login To See Price |
| Operator Rear Screen | ||||||
| BYT12885 | Rear Screen, Canopy (GR#706289) |
450 - 650 | 62 | 1 | |
Login To See Price |

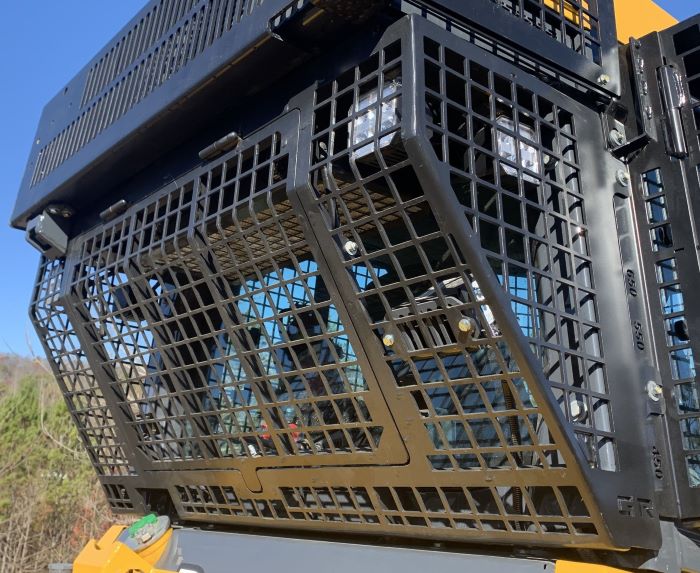

| BYT13518 | Rear Screen, Cab (GR#706496) Note: Includes Hinges and Slam Latch System |
450 - 650 | 110 | 2 | |
Login To See Price |
| Operator Side Screens | ||||||

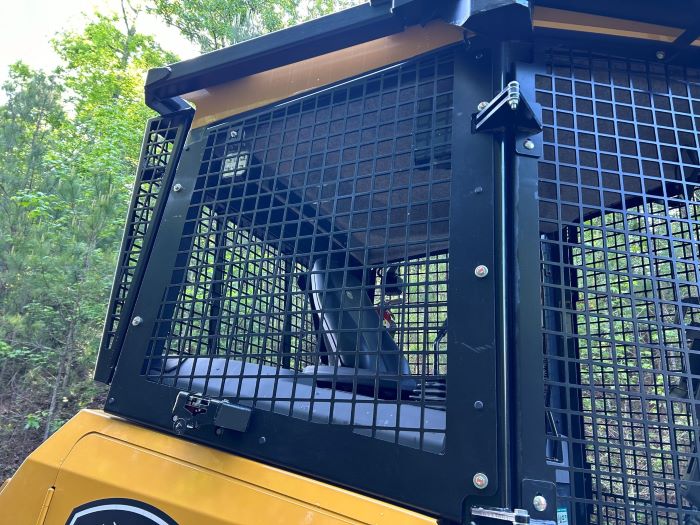

| BYT12451 | Side Screens, Canopy (GR#706309) |
450 - 650 | 82 | 2 | |
Login To See Price |

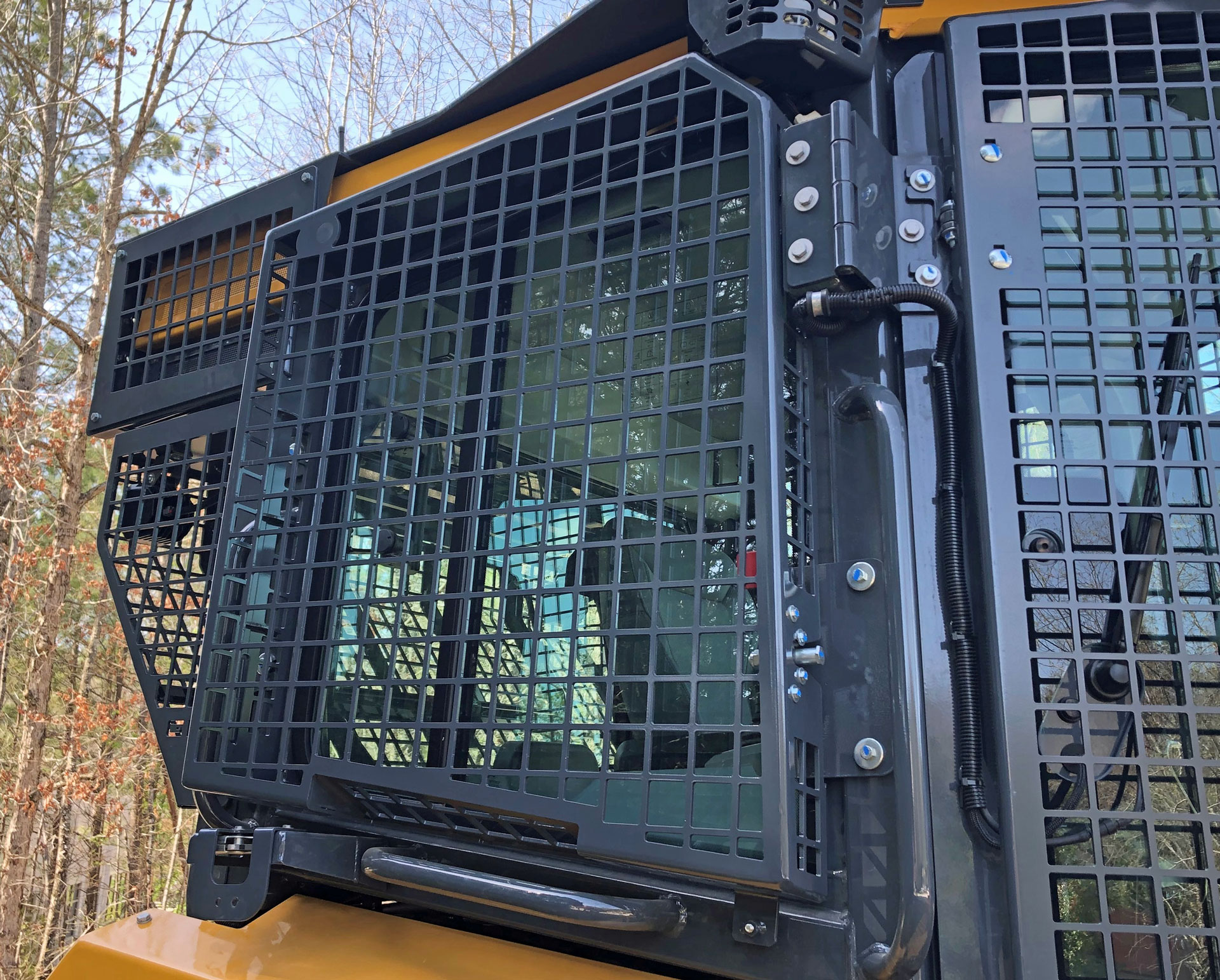

| BYT12450 | Side Screens, Cab (GR#706297) Note: Includes Hinges and Slam Latch System |
450 - 650 | 132 | 3 | |
Login To See Price |
| Operator Doors and Front Screen | ||||||

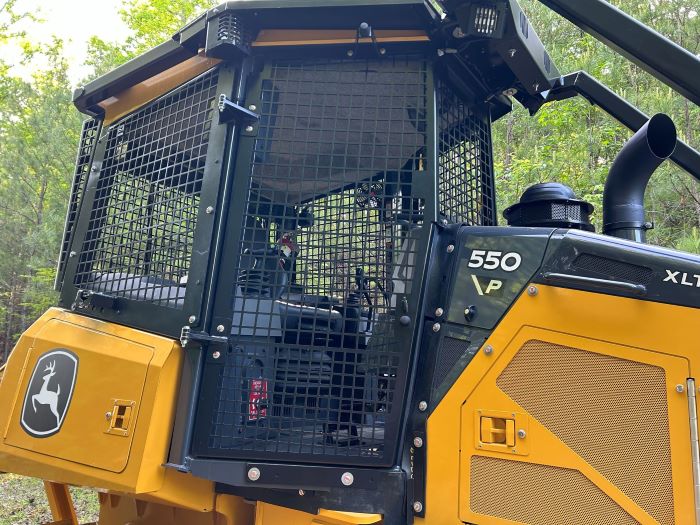

| BYT12449 | Doors and Front Screen, Canopy (GR#706305) Note: Does not include light guards |
450 - 650 | 160 | 4 | |
Login To See Price |

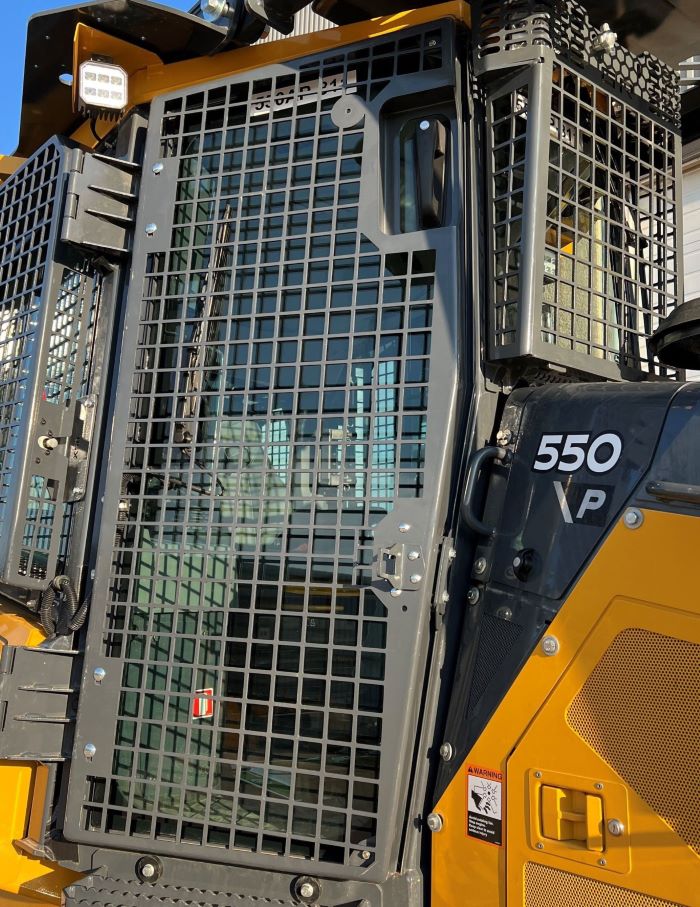

| BYT12448 | Doors and Front Screen, Cab GR#706296) Note: Includes Hinges amd Slam Latch System Does not include light guards |
450 - 650 | 192 | 4 |
|
Login To See Price |
| Blade Rakes and Brush Guards | ||||||
| BYT13356 | Blade Rake, Standard Duty, w/o Brush Guard (GR#706383) Notes: For 115" Blade Rake removable only. Will not work with grade control |
450 - 650 | 932 | 4 | |
Login To See Price |
| BYT13358 | Blade Rake, Standard Duty, w/o Brush Guard GR#706384) Notes: For 124" Blade Rake removable only. Will not work with grade control |
450 - 650 | 938 | 4 | |
Login To See Price |
| BYT13357 | Blade Rake, Heavy Duty, w Brush Guard (GR#706387) Notes: For 115" Blades Rake removable only. Will not work with grade control |
450 - 650 | 1250 | 4 | |
Login To See Price |
| BYT13360 | Blade Rake, Heavy Duty, w Brush Guard (GR#706388) Notes: For 124" Blades Does not work with spill guard. Rake removable only. Will not work with grade control |
450 - 650 | 1246 | 4 | |
Login To See Price |
| BYT13361 | Blade Rake, Heavy Duty, w Brush Guard (GR#706389) Notes: For 128" Blades Does not work with spill guard. Rake removable only. Will not work with grade control |
450 - 650 | 1248 | 4 | |
Login To See Price |

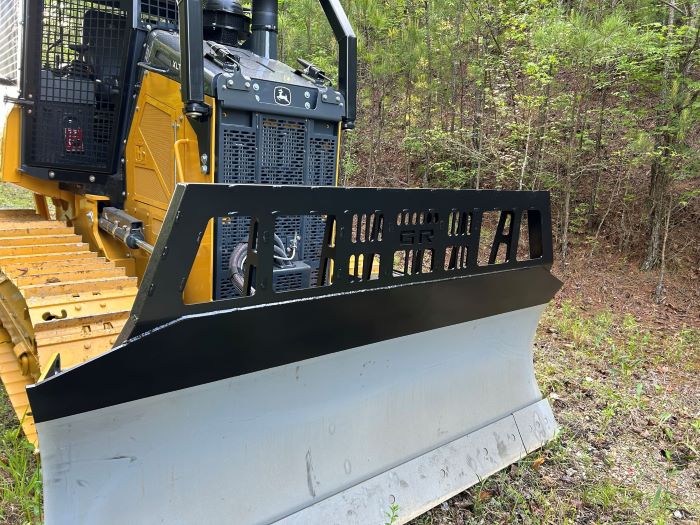

BYT13350 |
Brush Guard, Grille Width (GR#706395) |
450 - 650 | 100 | 4 | |
Login To See Price |
| BYT13351 | Brush Guard, Full Width (GR#706396) |
450 - 650 | 128 | 4 | |
Login To See Price |
| BYT13352 | Brush Guard, Full Width (GR#706397) Notes: Fits 105" Blades |
450 - 650 | 138 | 4 | |
Login To See Price |
| BYT13353 | Brush Guard, Full Width (GR#706398) Notes: Fits 115" Blades |
450 - 650 | 146 |
4 | |
Login To See Price |
| Special Application Attachments | ||||||

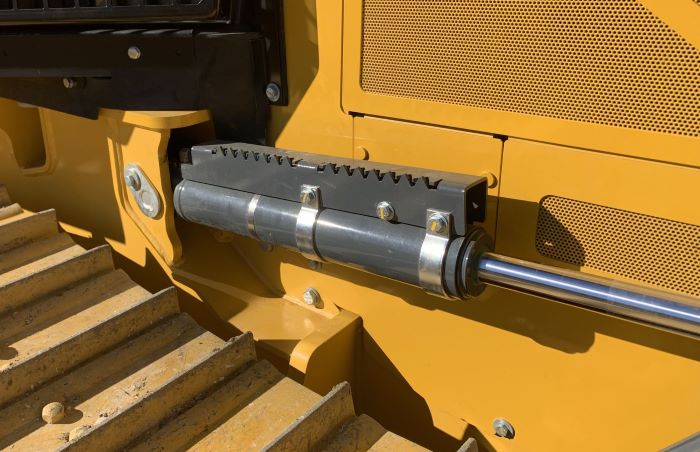

| BYT13355 | Lift Cylinder Hose Guards (GR#706375) | 450 - 650 | 16 | 1 | |
Login To See Price |

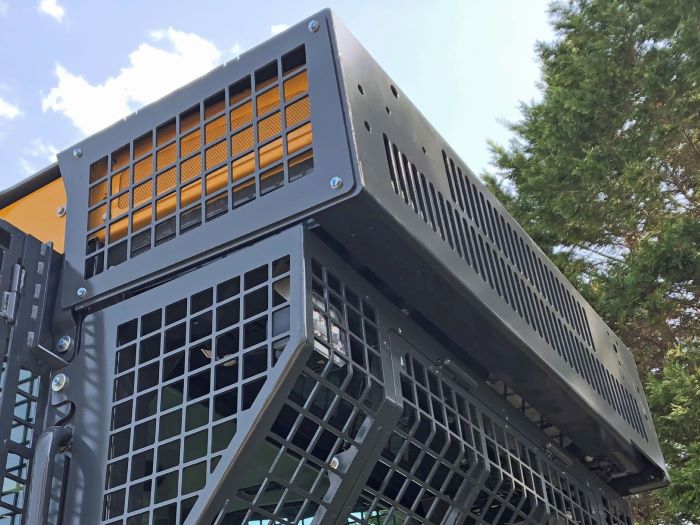

| BYT12452 | A/C Condenser Guard (GR#706246) Note: Requires Rear Screen and Will not work with SmartGrade |
450 - 650 | 118 | 2 | |
Login To See Price |
| BYT13322 | Tank Guard (GR#706377) | 450 - 650 XLT | 375 | 5 | |
Login To See Price |
| BYT13323 | Tank Guard (GR#706380) | 450 - 650 LGP | 368 | 5 | |
Login To See Price |
BYT13359 |
C-Frame Reinforcement Kit | 450 - 550 |
162 | 16 | |
Login To See Price |
| BYT13367 | C-Frame Reinforcement Kit | 650 | 162 | 16 |
|
Login To See Price |
| 706342 | Light Guard Kit, Brow Lights Only Note: For Arched Limb Risers |
450 - 650 | 19 | 3 | |
Login To See Price |
| 706349 | Light Guard kit, Brow Lights Only Note: For PTP Limb Risers |
450 - 650 | 13 | 3 | |
Login To See Price |

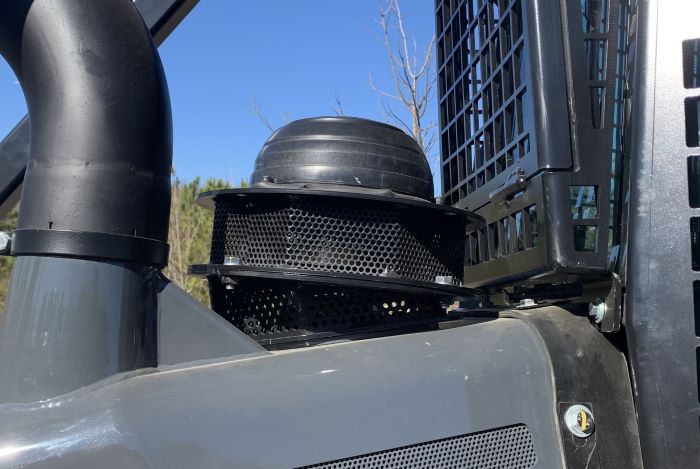

| 706346 | Intake Guard, Engine Air Note: For Turbine Type |
550 - 650 | 20 | 2 | |
Login To See Price |
Call |
Seal Kit, Hood / Cab Note: Requires G.R. Mfg. Door Screens to be installed. |
450 - 650 | Call | ? | Login To See Price | |
| Last Update: October 2022 | ||||||
