450K, 550K, & 650K Crawler Dozer Products
| Part Number | 450K, 550K & 650K Kit Descriptions | Will fit Machines | Shipping Weights - Lbs | Average Install Hrs. | Installation Instructions | List Price DS25 |
|---|---|---|---|---|---|---|
| AT, ETN & BYT part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | ||||||
| Canopy Full Enclosure Kits | ||||||
| BYT10409 |
Full Enclosure Kit, Canopy, (GR#705989) Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen Note: SN 305398 - xxxx |
450K & 550K FT4 |
605 | 12 |
 |
Login To See Price |
| BYT10410 |
Full Enclosure Kit, Canopy, (GR#705990) Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen Note: SN 305399 - xxxx |
650K FT4 |
620 | 12 |
|
Login To See Price |
| 705555 |
Full Enclosure Kit, Canopy Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen Note: SN xxxx - 305397 |
550K & 650K FT4 |
610 | 12 |
|
Login To See Price |
| 705454 |
Full Enclosure Kit, Canopy Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen |
550K & 650K IT4 |
630 | 12 |
|
Login To See Price |
| Cab Full Enclosure Kits | ||||||
| BYT10166 |
Full Enclosure Kit, Cab, (GR#705964) Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen & AC Condensor Guard Note: SN 305398 - xxxx |
450K & 550K FT4 |
793 | 15 |
|
Login To See Price |
| BYT10167 |
Full Enclosure Kit, Cab, (GR#705965) Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen & AC Condensor Guard Note: SN 305399 - xxxx |
650K FT4 |
811 | 15 |
|
Login To See Price |
| 705554 |
Full Enclosure Kit, Cab Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen & AC Condensor Guard Note: SN xxxx - 305397 |
550K & 650K FT4 |
758 | 15 |
|
Login To See Price |
| 705453 |
Full Enclosure Kit, Cab Includes Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen & AC Condensor Guard |
550K & 650K IT4 |
768 | 15 |
|
Login To See Price |
| Limb Risers (Sweeps) | ||||||
|
Limb Risers, Point-to-Point, Cab and Canopy, (GR#705958)
Note: SN 305398 - xxxx |
450K & 550K FT4
|
299 | 3 |
|
Login To See Price | |
|
Limb Risers, Point-to-Point, Cab and Canopy, (GR#705561)
Note: SN 305399 - xxxx |
650K FT4
|
304 | 3 |
|
Login To See Price | |
| AT435076 |
Limb Risers, Point-to-Point, Cab and Canopy, (GR#705561)
Note: SN xxxx - 305397 |
550K & 650K FT4 |
304 | 3 |
|
Login To See Price |
| 705455 |
Limb Risers, Point-to-Point, Cab and Canopy |
550K & 650K IT4 |
304 | 3 |
|
Login To See Price |
| BYT10165 |
Limb Risers, Arched, Cab and Canopy, (GR#705959)
Note: SN 305398 - xxxx |
450K & 550K FT4
|
323 | 3 |
|
Login To See Price |
| AT435075 |
Limb Risers, Arched, Cab and Canopy, (GR#705560) Note: 550K SN xxxx - 305397 Note: 650K SN 275978 - xxxx |
550K & 650K FT4
|
332 | 3 |
|
Login To See Price |
| 705449 |
Limb Risers, Arched, Cab and Canopy |
550K & 650K IT4 |
332 | 3 |
|
Login To See Price |
| Operator Rear Screens | ||||||
| AT413184 |
Rear Screen, Canopy, (GR#705423) Note: With fuel filler door |
450K - 650K
|
50 | 2 |
|
Login To See Price |
| AT413183 |
Rear Screen, Cab, (GR#705413) Note: With quick release hinged opening |
450K - 650K
IT4 & FT4 |
95 | 3 |
|
Login To See Price |
| Operator Side Screens | ||||||
| AT413012 |
Side Screens, Canopy, (GR#705442)
Note: Requires rear screen |
450K - 650K
|
100 | 3 |
|
Login To See Price |
| AT413011 |
Side Screens, Cab, (GR#705412)
Notes: With quick release, Requires rear screen |
450K - 650K
|
95 | 3 |
|
Login To See Price |
| Operator Doors and Front Screen | ||||||
| BYT10018 |
Operator Doors and Front Screen, Canopy,
(GR#705776) Notes: Requires side screens Note: SN 305398 - xxxx |
450K - 650K
FT4 |
Call | 4 |
|
Login To See Price |
| AT435071 |
Operator Doors and Front Screen, Canopy, (GR#705559) Notes: Requires side screens Note: SN xxxx - 305397 |
550K & 650K FT4 |
200 | 4 |
|
Login To See Price |
| 705443 |
Operator Doors and Front Screen, Canopy
Note: Requires Side Screens |
550K & 650K IT4 |
200 | 4 |
|
Login To See Price |
| BYT10411 |
Operator Doors and Front Screen, Cab, (GR#705940) |
450K - 650K FT4 |
178 |
5 |
|
Login To See Price |
| 705720 |
Operator Doors and Front Screen, Cab
|
550K & 650K FT4 |
140 |
5 |
|
Login To See Price |
| 705448 |
Operator Doors and Front Screen, Cab
Note: Requires side screens |
550K & 650K IT4 | 180 | 5 |
|
Login To See Price |
| Blade Rakes and Brush Guards | ||||||
| AT353099 |
Blade Rake, Standard Duty, Pin On w/o Brush Gd. (GR#705209) Notes: 114 Inches OAL (8 teeth), For 115 Inch Blades Only, AR400 Material, Requires Heavy Duty C-Frame &Recommend C-Frame Reinforcement Kit |
450K - 650K
IT4 & FT4 |
980 | 4 |
|
Login To See Price |
| AT369893 |
Blade Rake, Standard Duty, Pin On w/o Brush Guard, (GR#705301)
Notes: 114 Inches OAL (8 teeth), For 124 Inch Blades Only, AR400 Material, Requires Heavy Duty C-Frame & Recommend C-Frame Reinforcement Kit |
450K - 650K
IT4 & FT4 |
990 | 4 |
|
Login To See Price |
| AT343938 |
Blade Rake, Heavy Duty, Pin On with Brush Guard, (GR#705188) Notes: 98 Inches OAL (7 teeth), For 97 Inch and 105 Inch Blades Only, AR400 Material, Requires Heavy Duty C-Frame, Recommend C-Frame Reinforcement Kit & Will not work with Blade Brush Guard |
450K - 650K
IT4 & FT4 |
1180 | 4 |
|
Login To See Price |
| AT343939 |
Blade Rake, Heavy Duty, Pin On with Brush Guard, (GR#705189) Notes: 114 Inches OAL (8 teeth), For 115 Inch Blade Only, AR400 Material, Requires Heavy Duty C-Frame, Recommend C-Frame Reinforcement Kit & Will not work with Blade Brush Guard |
450K - 650K
IT4 & FT4 |
1210 | 4 |
|
Login To See Price |
| AT369894 |
Blade Rake, Heavy Duty, Pin On with Brush Guard,
(GR#705302) Notes: 114 Inches OAL (8 teeth), For 124 Inch Blade Only, AR400 Material, Requires Heavy Duty C-Frame, Recommend C- Frame Reinforcement Kit & Will not work with Blade Brush Guard |
450K - 650K
IT4 & FT4 |
1220 | 4 |
|
Login To See Price |
| 706275 | Blade Rake, Heavy Duty, Pin On with Brush Guard Notes: 114 Inches OAL (8 teeth), For 128 Inch Blade Only, AR400 Material, Requires Heavy Duty C-Frame, Recommend C-Frame Reinforcement Kit & Will not work with Blade Brush Guard |
450K - 650K |
1245 | 4 | |
Login To See Price |
| 704981 |
C-Frame Reinforcement Kit Notes: Recommended for use with any Blade Rake, Used on Heavy Duty C-Frames SN: 450K F304771-xxxx SN: 550K F305398-xxxx |
450K - 650K
IT4 & FT4 |
306 | 20 |
|
Login To See Price |
| 706286 | C-Frame Reinforcement Kit Note: Recommended for use with any Blade Rake, Used on Heavy Duty C-Frame SN: 550K - E217276-275527 & F275977-303907 SN: 650K - E216396-275533 & F275978-303837 SN: 650K - F305399-xxxx |
550K - 650K | 310 | 20 | |
Login To See Price |
| AT343937 |
Blade Brush Guard, (GR#705184) Notes: 41 Inches Width Grille Guard, Will not fit 124 Inch Blade |
550K & 650K
IT4 & FT4 |
98 | 2 |
|
Login To See Price |
| AT343935 |
Blade Brush Guard, (GR#705186) Notes: 81 Inches Width For 90 - 97 Inch Blades |
550K & 650K
IT4 & FT4 |
126 | 3 |
|
Login To See Price |
| AT343936 |
Blade Brush Guard, (GR#705187) Notes: 92 Inches Width, For 105 Inch Blades |
550K & 650K
IT4 & FT4 |
140 | 3 |
|
Login To See Price |
| AT364288 |
Blade Brush Guard, (GR#705253) Notes: 102 Inches Width, For 115 Inch Blades |
550K & 650K
IT4 & FT4 |
145 | 3 |
|
Login To See Price |
| Special Application Attachments | ||||||
| AT446908 |
A/C Condersor Guard, (GR#705721)
Note: Requires rear screen |
450K - 650K
IT4 & FT4 |
112 | 1 |
|
Login To See Price |
| 705613 | JD Link Guard | X50K - 850K | 25 | 1 |
|
Login To See Price |
| AT320934 | Lift Cylinder Guards, (GR#704999) | 450K - 650K | 16 | 1 |
|
Login To See Price |
| BYT10770 |
Tank Guard, (GR#706001)
Notes: Covers rear corners and rear of machine SN 305398 - xxxx |
450K - 650K FT4, XLT Only |
366 |
5 |
|
Login To See Price |
| BYT10413 |
Tank Guard, (GR#705991)
Notes: Covers rear corners and rear of machine SN 305398 - xxxx |
450K - 650K FT4, LGP Only |
355 |
5 |
|
Login To See Price |
| 705562 |
Tank Guard
Notes: Covers rear corners and rear of machine SN xxxx - 305397 |
550K & 650K FT4 |
375 |
5 |
|
Login To See Price |
| 705457 |
Tank Guard
Note: Covers rear corners and rear of machine |
550K & 650K IT4 |
320 |
5 |
|
Login To See Price |
| 704901 | Final Drive Seal Guards | 550K & 650K | 20 | 8 |
|
Login To See Price |
| 704269 |
Fire Extinguisher, Canopy Note: 5 lbs with mount |
550K & 650K | 10 | 1 |
|
Login To See Price |
| 704519 |
Fire Extinguisher, Cab Note: 5 lb with mount |
550K & 650K | 10 | 1 |
|
Login To See Price |
| 706019 |
Bottom Guard Reinforcement Plates
Note: SN 305398 - xxxx |
450K - 650K FT4 | 104 | 6 |
|
Login To See Price |
| 705772 |
Bottom Guard Reinforcement Plates
Note: SN xxxx - 305397 |
550K & 650K FT4 | 95 | 6 |
|
Login To See Price |
| 705072 |

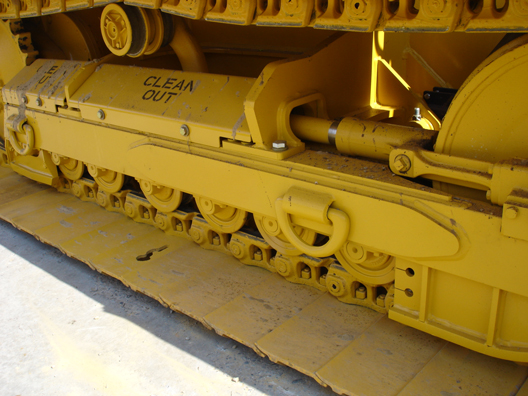

Tie Down Rings
Notes: Weld to track frame, set of 4 |
550K & 650K | 20 | 3 |
|
Login To See Price |
| 706032 |
A/C Environmental Filter System, Cab Notes: HEPA and Carbon filters (Paper Element #203515 & Carbon Element #206177) Note: SN 305398 - xxxx |
450K - 650K | 43 | 2 |
|
Login To See Price |
| 704495 |

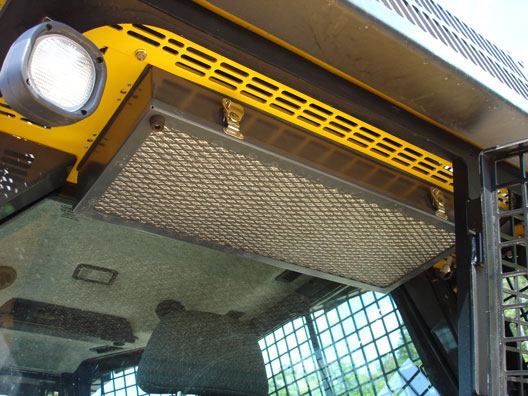

A/C Environmental Filter System, Cab Notes: HEPA & Carbon filters (Paper Element #203515 & Carbon Element #206177) Note: SN xxxx - 305397 |
550K & 650K | 26 | 2 |
|
Login To See Price |
| 705535 |

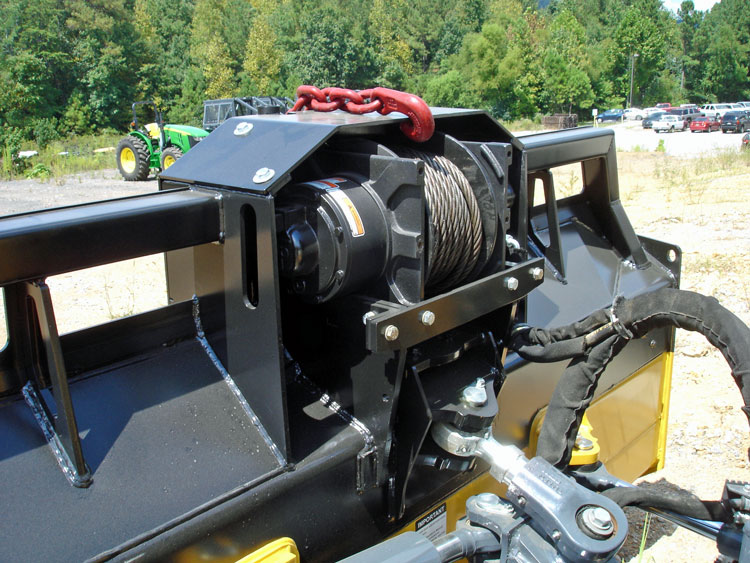

Blade Mounted Winch Notes: 20,000# bare drum line pull, Requires Hydraulic Valve Section |
550K & 650K | 530 | 12 |
|
Login To See Price |
Last Update: April 2022
