700K Crawler Dozer Products
| Part Number | 700K Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions | List Price DS25 |
|---|---|---|---|---|---|---|
| AT, ETN & BYT part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | ||||||
| Canopy Full Enclosure Kits | ||||||
| BYT10021 |
Full Enclosure Kit, Canopy, (GR#705916)
|
700K FT4 | 750 | 14 |
 |
Login To See Price |
| 705451 |
Full Enclosure Kit, Canopy Includes: Arched Limb Riser, Side Screens, Rear Screen and Doors and Front Screen |
700K IT4 | 754 | 14 |
|
Login To See Price |
| Cab Full Enclosure Kits | ||||||
| AT435067 |
Full Enclosure Kit, Cab, (GR#705563)
|
700K FT4 | 893 | 16 |
|
Login To See Price |
| 705450 |
Full Enclosure Kit, Cab Includes: Arched Limb Riser, Side Screens, Rear Screen, Doors and Front Screen and AC Condenser Guard |
700K IT4 | 891 | 16 |
|
Login To See Price |
| Limb Risers (Sweeps) | ||||||
| AT435072 |
Limb Risers, Arched, Cab and Canopy, (GR#705558)
Note: Will not work with SmartGrade |
700K FT4 | 470 | 4 |
|
Login To See Price |
| 705452 |
Limb Risers, Arched, Cab and Canopy |
700K IT4 | 498 | 4 |
|
Login To See Price |
| Operator Rear Screens | ||||||
| AT413184 |
Operator Rear Screen, Canopy, (GR#705423)
|
700K
IT4 & FT4 |
54 | 3 |
|
Login To See Price |
| AT413183 | Operator Rear Screen, Cab, (GR#705413) |
700K
IT4 & FT4 |
80 | 3 |
|
Login To See Price |
| Operator Side Screens | ||||||
| AT413012 |
Operator Side Screens, Canopy, (GR#705442)
Note: Requires rear screen |
700K
IT4 & FT4 |
105 | 3 |
|
Login To See Price |
|
Operator Side Screens, Cab, (GR#705556)
Note: Requires rear screen |
700K FT4 | 102 | 3 |
|
Login To See Price | |
| AT413011 |
Operator Side Screens, Cab, (GR#705412)
Note: Requires rear screen |
700K IT4 | 102 | 3 |
|
Login To See Price |
| Operator Doors and Front Screen | ||||||
| BYT10018 |
Door Screens and Front Window Screen, Canopy, (GR#705776)
Note: Requires side screens |
700K FT4 | 160 | 4 |
|
Login To See Price |
| AT413014 |
Door Screens and Front Window Screen, Canopy, (GR#705443)
Note: Requires side screens |
700K IT4 | 160 | 4 |
|
Login To See Price |
| AT435070 |
Door Screens and Front Window Screen, Cab, (GR#705557)
Notes: Requires side screens Does not work with Smart Grade System. |
700K FT4 | 130 | 5 |
|
Login To See Price |
| 705448 |
Door Screens and Front Window Screen, Cab
Note: Requires side screens |
700K IT4 | 130 | 5 |
|
Login To See Price |
| Blade Rakes and Brush Guards | ||||||
| AT353098 |
Blade Rake, Pin On with Brush Guard, (GR#705204)
Notes: 116" OAL, For 120" & 132"? blades, AR400 Mat'l, Will not work with Blade Brush Guard |
700K
IT4 & FT4 |
1575 | 4 |
|
Login To See Price |
| AT322625 |
Blade Brush Guard, (GR#705029) Notes: 52" OAL, For 120" and 132" Blades SN 100816 - xxxx |
700K
IT4 & FT4 |
171 | 2 |
|
Login To See Price |
| AT324129 |
Blade Brush Guard, (GR#705037)
Notes: Full Blade Width, For 120", 126" and 132" blades |
700K
IT4 & FT4 |
350 | 3 |
|
Login To See Price |
| Special Application Attachments | ||||||
| AT446908 |

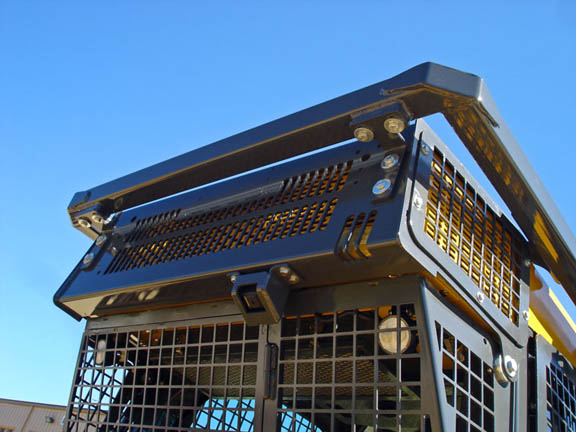

A/C Condensor Guard, Cab, (GR#705721) Notes: Requires Rear Screen Will not work with SmartGrade |
700K
IT4 & FT4 |
111 | 1 |
|
Login To See Price |
| 705613 | JD Link Guard |
X50K-850K
IT4 |
25
|
1 |
|
Login To See Price |
| BYT10022 | Tank Guard, (GR#705917) |
700K,
IT4 & FT4 |
465 | 6 |
|
Login To See Price |
| AT223607 | Lift Cylinder Guards, (GR#704588) |
700K
IT4 & FT4 |
18 | 1 |
|
Login To See Price |
| 704495 |
A/C Environmental Filter System, Cab Notes: HEPA & Carbon filters (Paper Element #203515 & Carbon Element #206177) |
700K
IT4 & FT4 |
26 | 2 |
|
Login To See Price |
| 705525 | Final Drive Seal Guards |
700K
IT4 & FT4 |
54 | 16 |
|
|
| 705072 |
Tie Down Rings Notes: Weld to track frame, Set of 4 |
700K
IT4 & FT4 |
20 | 4 |
|
Login To See Price |
| Last Update: August 2020 | ||||||
