K Series Wheel Loader Products

Part Number K Series Loader Kit Descriptions Will fit these machines Shipping Weight - Lbs Average Install Time - Hrs Installation Instructions List Price DS30
AT, ETN & BYT part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg.

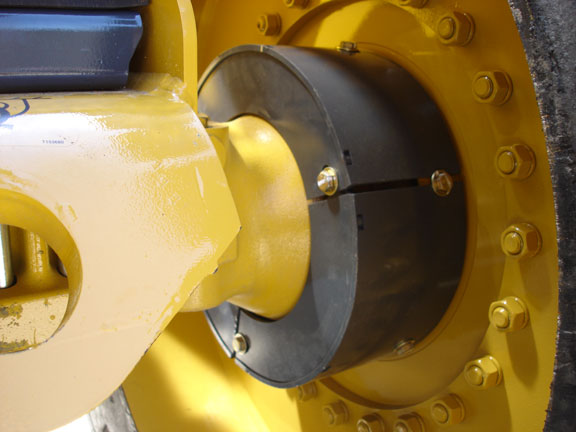

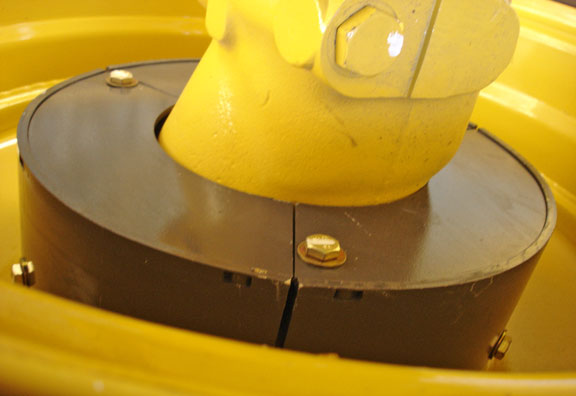

Axle Seal Guards
705190 Axle Seal Guards
Note: After Serial #611800
524K - 544K, IT4, ERA T3 & FT4 115 6 Login To See Price
705191 Axle Seal Guards
Note: After Serial #611797
624K, IT4, ERA T3 & FT4 115 6 Login To See Price

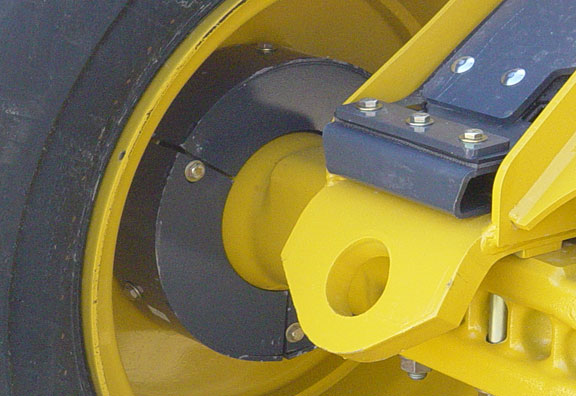

705174 Axle Seal Guards
Note: SN 611232-- 644J&K
SN 611219-- 724J&K

644K, 724K, IT4, ERA T3 & FT4

& 644K STSE

115 8 Login To See Price

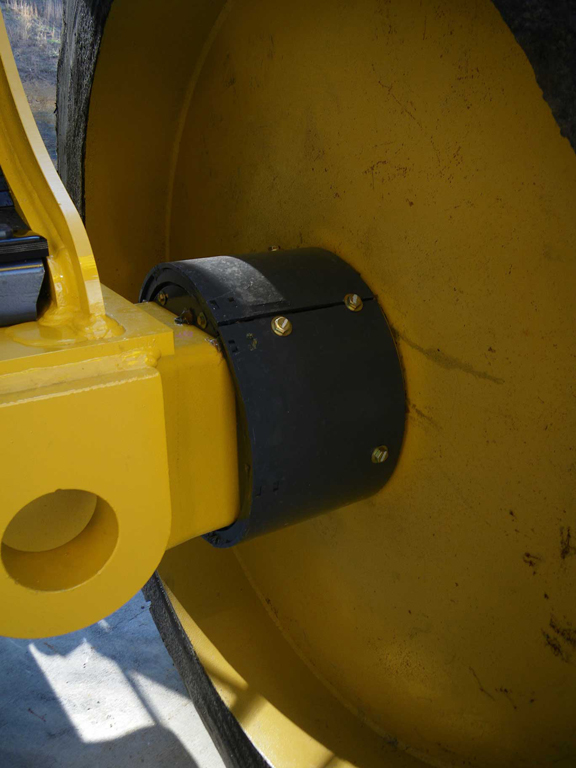

705289 Axle Seal Guards 744K, IT4, ERA T3 & FT4
824K FT4
180 10 Login To See Price
705437 Axle Seal Guards

844K IT4

110 16 Login To See Price

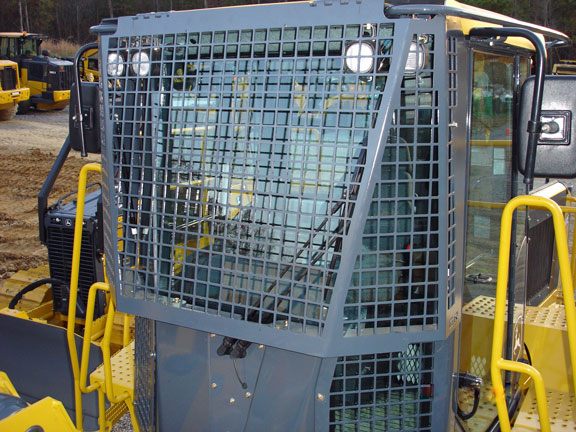

Front Screen Protection

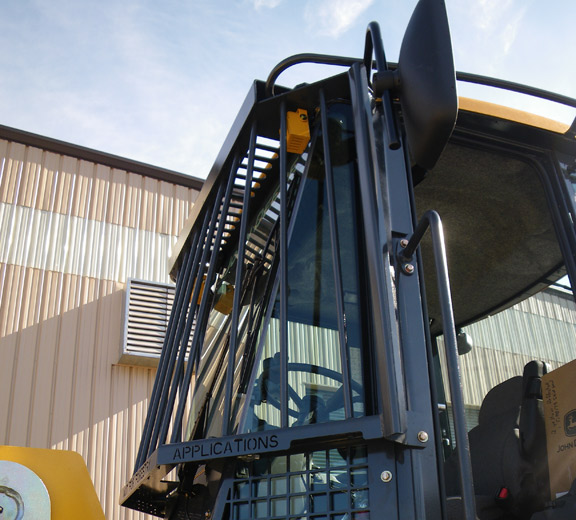

705260 Operator Front Screen, Vertical Bars
Notes: Not for Forestry Applications
Fits Standard & Hi-Lift Z-Bar Linkages

444K - 844K,

IT4, ERA T3 & FT4

250 6 Login To See Price
705409

Oprator Front Screen, Forestry (Laser Cut Frame)

Note: Fits Standard & Hi-Lift Z-Bar Linkages

444K - 844K, IT4 ERA T3 & FT4

225 6 Login To See Price

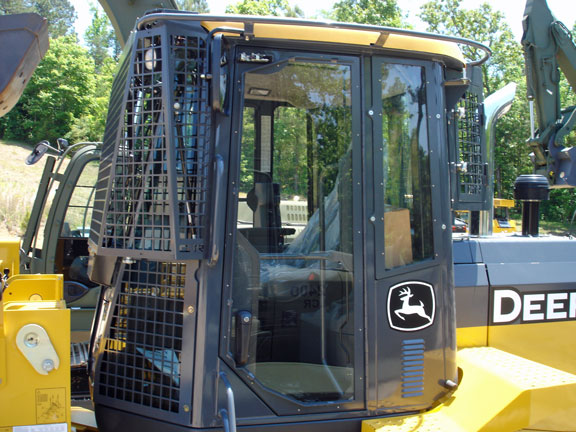

Cab Protection
705788 Enclosure, Cab
Notes: Polycarbonate side window guards and screen rear window guard

444K - 624K FT4

200 16 Login To See Price
705399 Enclosure, Cab
Notes: Polycarbonate side window guards and screen rear window guard

644K - 724K FT4

200 16 Login To See Price
705510 Enclosure, Cab
Notes: Polycarbonate side window guards and screen rear window guard

744K - 824K IT4

& FT4

215 16 Login To See Price
705889 Enclosure, Cab
Notes: Polycarbonate side window guards and screen rear window guard

844K FT4
Only

192 16 Login To See Price
705399 Enclosure, Cab
Notes: Polycarbonate side window guards andscreen rear window guard

444K - 724K IT4, ERA T3, &

844K IT4 & ERA T3

210 16 Login To See Price
705264 Enclosure, Cab
Notes: Polycarbonate side window guards and screen rear window guard
444K - 824K 180 16 Login To See Price

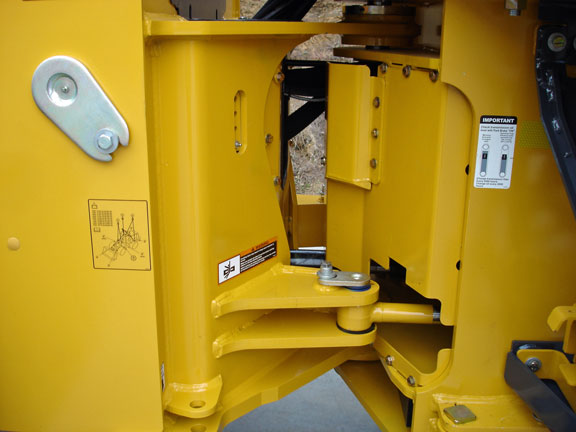

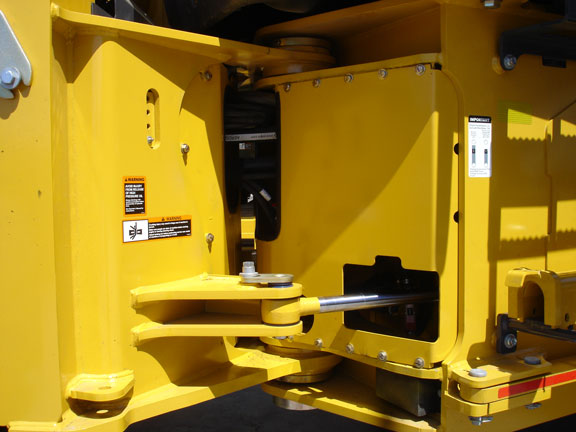

Articulation Joint/Transmission Side Shield/Loader Frame Guards

705899

Articulation Joint Guard Kit
Note: Powerllel Frame Only

444K FT4 75 5 Login To See Price

705900

Articulation Joint Guard Kit
Note: Standard Frame Only

444K FT4 64 5 Login To See Price

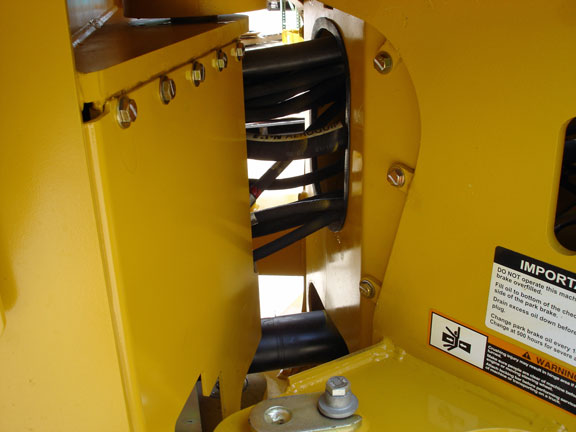

705492 Articulation Joint Guard Kit 444K IT4 110 6 Login To See Price
705281 Articulation Joint Guard Kit 444K 92 6 Login To See Price

705777

Articulation Joint Guard Kit
Note: SN 670308 - xxxx

524K - 544K FT4

150 6 Login To See Price

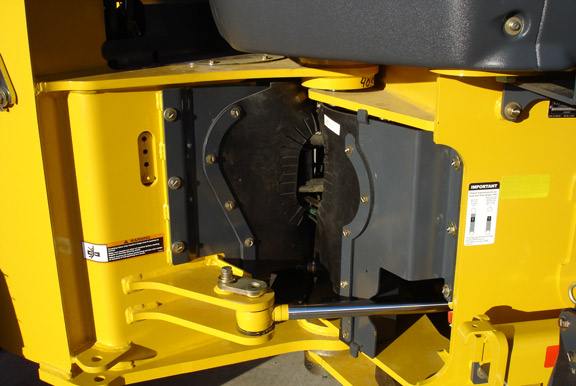

705287 Articulation Joint Guard Kit
Note: SN 670308 - xxxx

544K ERA T3

98 6 Login To See Price
705481

Articulation Joint Guard Kit
Notes:
SN 524 E642246 - 670307
SN 544 E642665 - 670307

524K - 544K IT4

130 6 Login To See Price
705287 Articulation Joint Guard Kit
Note:
SN 524 xxxx - 642245
SN 544 xxxx - 642664
524K-544K 98 6 Login To See Price
705733 Articulation Joint Guard Kit
Note: SN 658065 - xxxx
624K FT4 92 6 Login To See Price
705747 Articulation Joint Guard Kit
Note: SN 658065 - xxxx
624K ERA 3 168 6 Login To See Price
705468 Articulation Joint Guard Kit
Note: SN 692635 - 658064
624K IT4 178 6 Login To See Price
705282 Articulation Joint Guard Kit
Note: SN xxxx - 642634
624K 170 6 Login To See Price
705523 Articulation Joint Guard Kit 644K STSE 170 6 Login To See Price
705746 Articulation Joint Guard Kit
Note: SN 658065 - xxxx
644K - 724K FT4 128 6 Login To See Price

705739

Articulation Joint Guard Kit
Note: SN 658065 - xxxx
644K ERA 3 170 6 Login To See Price
705283 Articulation Joint Guard Kit
Note: SN xxxx - 658217
644K & IT4 170 6 Login To See Price
705746 Articulation Joint Guard Kit 724K FT4

162

6 Login To See Price
705743 Articulation Joint Guard Kit
Note: SN 658065 - xxxx
724K ERA 3 Call 6 Login To See Price
705293 Articulation Joint Guard Kit
Note: SN xxxx - 658064
724K & IT4 165 6 Login To See Price
705757 Articulation Joint Guard Kit
Note: SN 409701 - xxxx

744K - 824K FT4

123

6 Login To See Price
705763 Articulation Joint Guard Kit
Note: SN 409701 - xxxx

744K ERA T3

155 6 Login To See Price

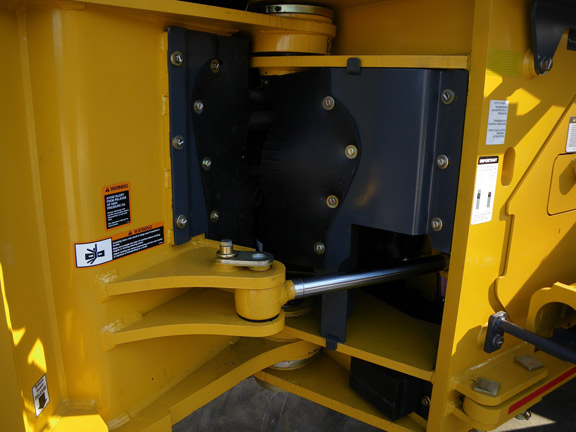

705285 Articulation Joint Guard Kit

744K - 824K

&

IT4

170 6 Login To See Price
705436 Articulation Joint Guard Kit 844K IT4 225 6 Login To See Price
706008 Articulation Joint Guard Kit 844K FT4 Series 3

250

6 Login To See Price

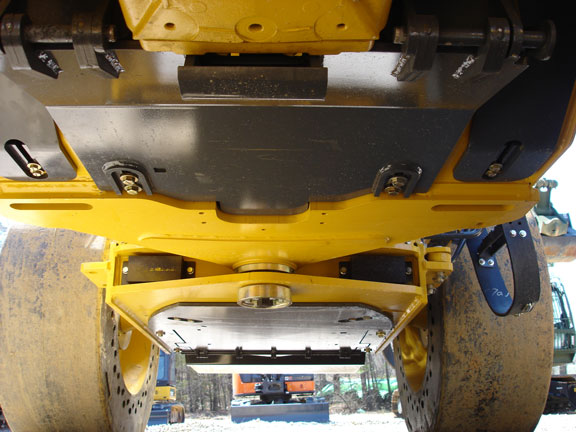

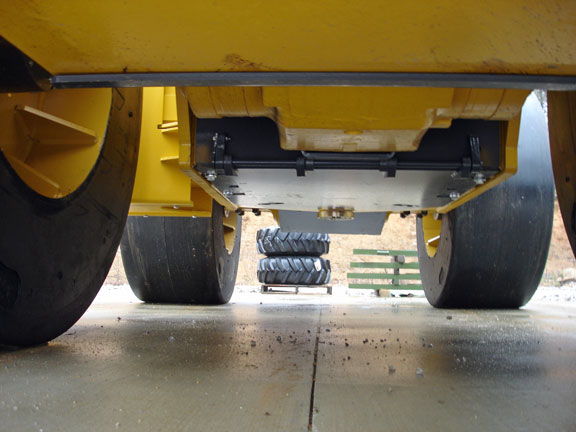

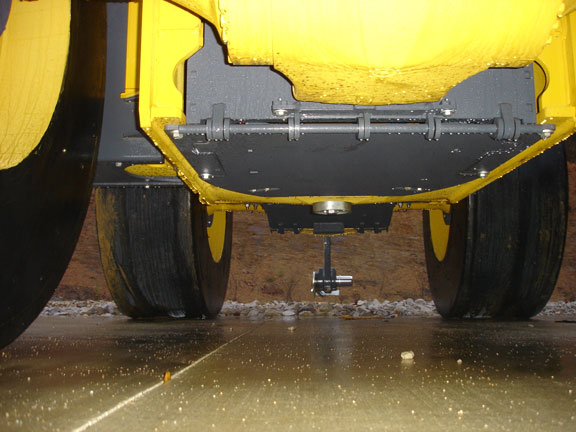

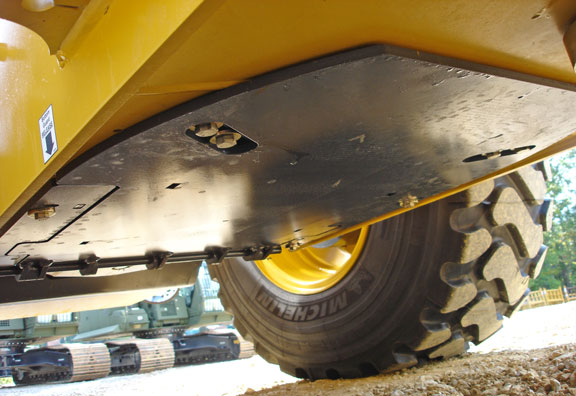

Extreme Service Bottom Guards
705359 Bottom Guards, Extreme Service, Hinged, Hydraulic
Note: SN xxxx - 658064
524K & IT4 720 12 Login To See Price
705262 Bottom Guards, Extreme Service, Hinged, Hydraulic 544K & IT4 690 12 Login To See Price
705734 Bottom Guards, Extreme Service, Hinged, Hydraulic 624K FT4 780 12 Login To See Price
705265 Bottom Guards, Extreme Service, Hinged, Hydraulic 624K & IT4 740 12 Login To See Price
705751 Bottom Guards, Extreme Service, Hinged, Hydraulic

644K - 724K FT4

860 12 Login To See Price
705276 Bottom Guards, Extreme Service, Hinged, Hydraulic
Note: SN xxxx - 658065

644K - 724K,

IT4 & 644KH

780 14 Login To See Price
705759 Bottom Guards, Extreme Service, Hinged, Hydraulic
Note: SN 409701 - xxxx
744K ERA T3 & 744K - 824K FT4

935

16 Login To See Price
705288 Bottom Guards, Extreme Service, Hinged, Hydraulic
Note: SN xxxx - 409700
744K & IT4 995 16 Login To See Price
705439 Bottom Guards, Extreme Service, Hinged, Hydraulic 844K IT4 1450 16 Login To See Price

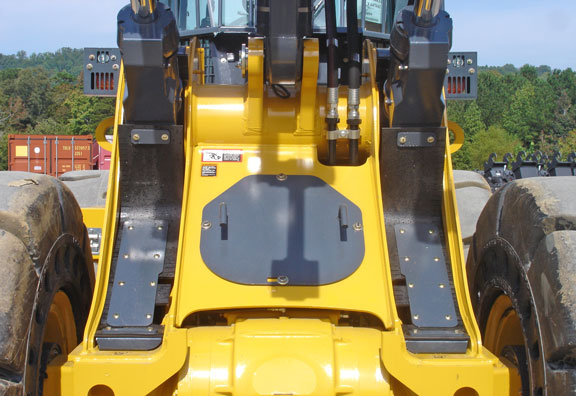

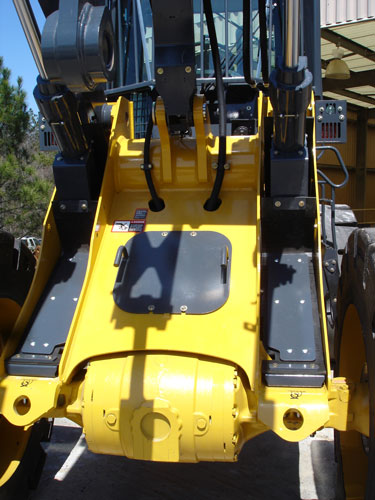

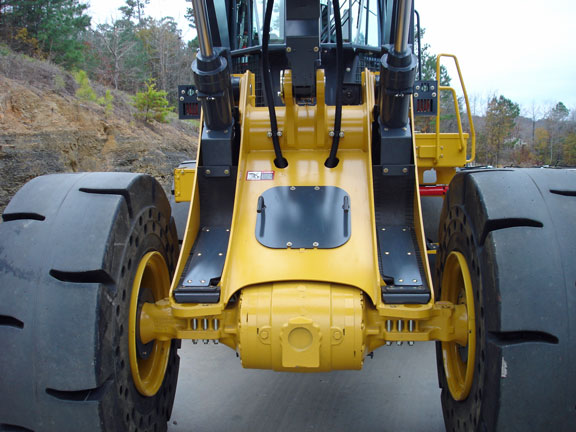

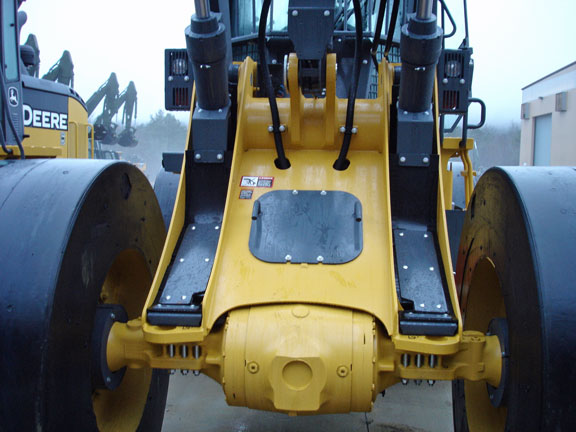

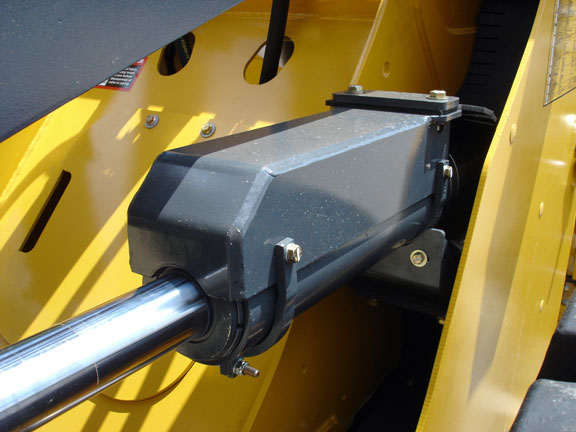

Boom Cylinder Hydraulic Line & Cavity Guards
705270 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
444K - 444K FT4 105 6 Login To See Price

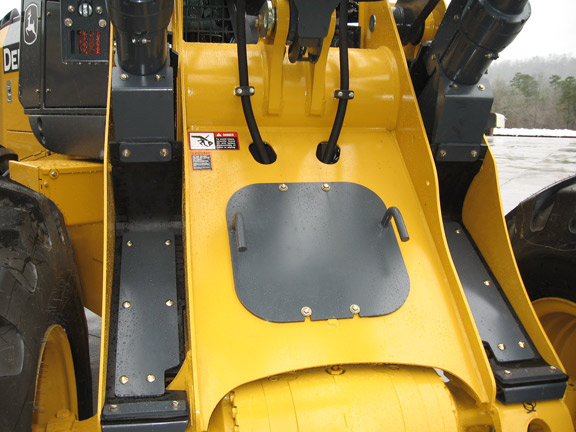

705271 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works will Ride Control and Front Fenders
524K - 544K, IT4, ERA T3 & FT4 165 6 Login To See Price
705272 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
624K, T3, IT4, ERA T3 & FT4 210 6 Login To See Price
705521 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
644K STSE 250 6 Login To See Price
705329 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
SN 625968 - xxxx

644K - 724K IT4, ERA T3 & FT4

250 6 Login To See Price
705273 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
SN xxxx - 625967

644K - 724K

250 6 Login To See Price
705758 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
SN 409701 - xxxx

744K - 824K FT4

189 6 Login To See Price
705274 Boom Cylinder Hydraulic Line & Cavity Guards
Notes: Works with Ride Control and Front Fenders
SN xxxx - 409700

744K - 824K

&

IT4

285 6 Login To See Price
705434 Boom Cylinder Hydraulic Line & Cavity Guards
Works with Ride Control and Front Fenders

844K IT4

295 6 Login To See Price
706016 Boom Cylinder Hydraulic Line & Cavity Guards
Works with Ride Control and Front Fenders

844K FT4
Series 3

309 6 Login To See Price

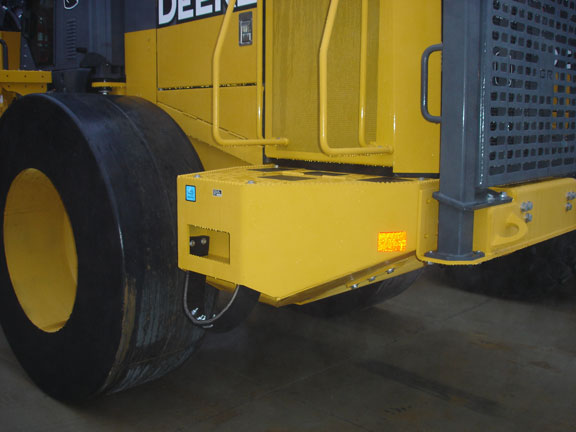

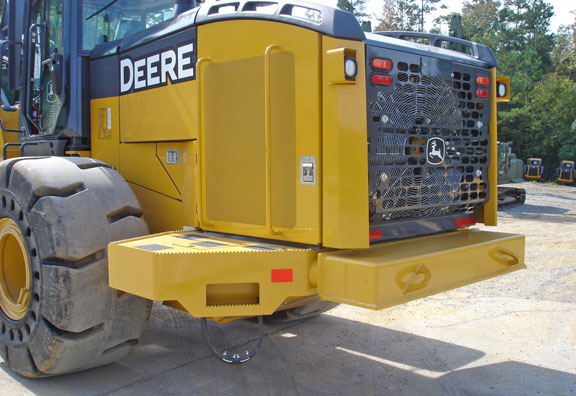

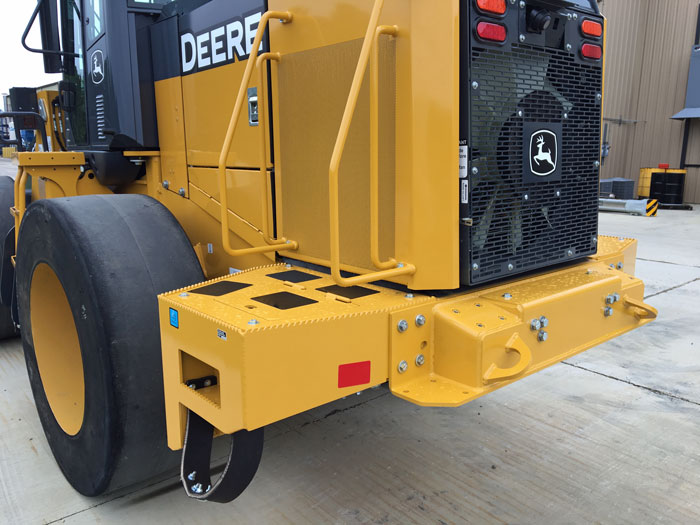

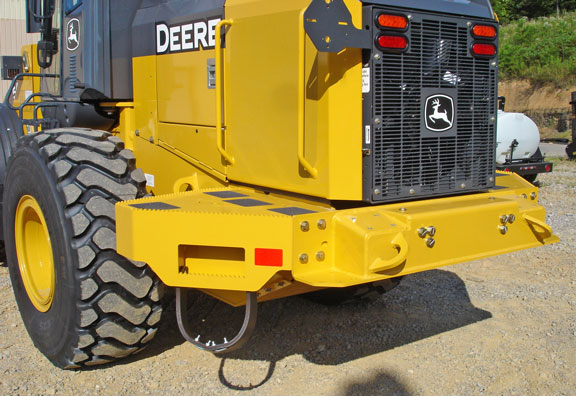

Rear Deflectors/Bumpers

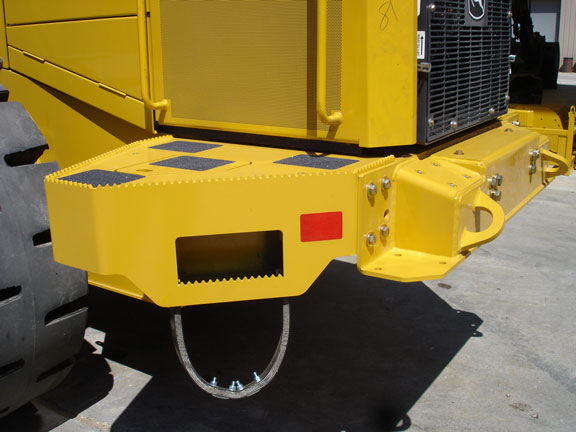

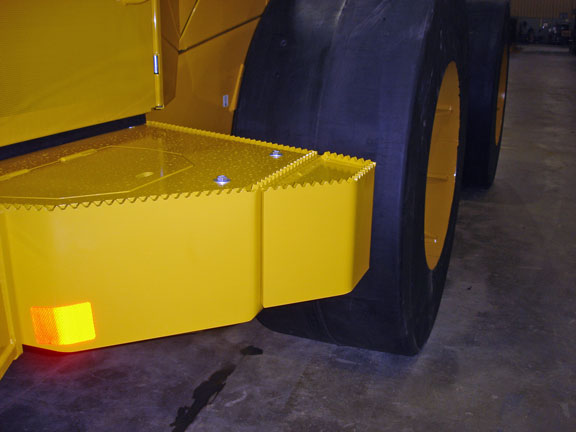

705779 Bumper with Deflectors
Notes: Will not work with any factory rear hitch.
SN 670309 - xxxx
444K FT4 1186 6 Login To See Price

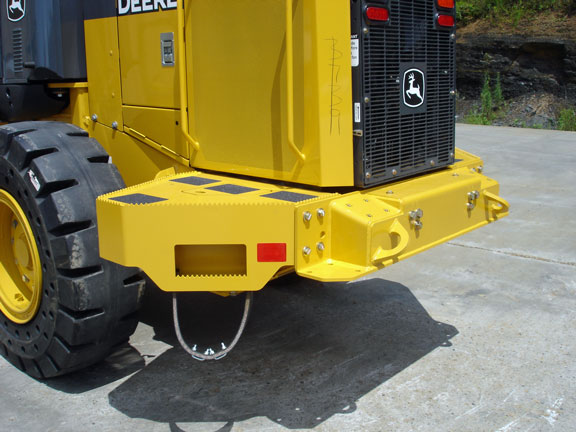

705493 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
444K IT4 875 6 Login To See Price
704967 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
444K 875 6 Login To See Price
705779 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN 670309 - xxxx
524K - 544K FT4 1186 8 Login To See Price

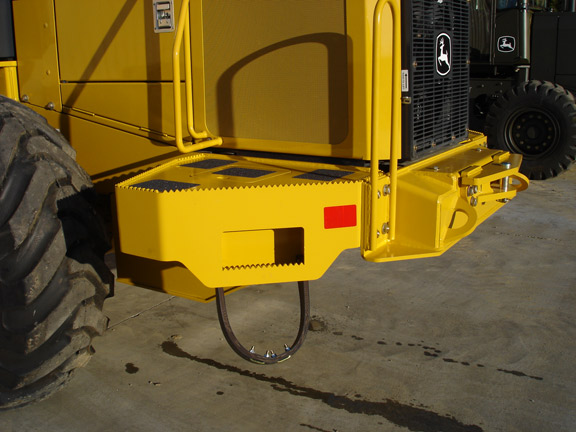

704942 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
544K ERA T3 880 6 Login To See Price
705477 Bumper with Deflectors
Notes: Will not work with any factory rear hitch.
524K SN 642249 - xxxx
544K SN 642665 - xxxx
524K - 544K IT4 880 6 Login To See Price
704942 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
544K 880 6 Login To See Price
705732 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN 658065 - xxxx
624K FT4 1075 8 Login To See Price
705466 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
624K IT4

860

6 Login To See Price
705199 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN xxxx - 642634 & ERA T3 SN 658065 - xxxx

624K & ERA T3

910 6 Login To See Price
705748 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN 658065 - xxxx

644K - 724K FT4

1290 8 Login To See Price
705383 Bumper with Deflectors
Note: Will not work with any factory rear hitch.

644K - 724K IT4

& 644K STSE

1380 6 Login To See Price
705176 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN xxxx - 642634 & ERA T3 SN 658065 - xxxx

644K & ERA T3

1380 6 Login To See Price
705748 Bumper with Deflectors)
Note: Will not work with any factory rear hitch.

724K FT4

1290 8 Login To See Price
705383 Bumper with Deflectors
Note: Will not work with any factory rear hitch.

724K IT4

1380 6 Login To See Price
705176 Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN 611232 - xxxx

724K & ERA T3

1380 6 Login To See Price
705760

Bumper with Deflectors
Note: Will not work with any factory rear hitch.
SN 409701 - xxxx

744K - 824K FT4

1676

8 Login To See Price
705358

Bumper with Defectors
Note: Will not work with any factory rear hitch.
SN
630720 - xxxx

744K IT4 1855 6 Login To See Price
705290

Bumper with Deflectos
Note: Will not work with any factory rear hitch.

744K - 824K & 744K ERA T3 1620 6 Login To See Price
705762

Extensions, Deflector
Note: Use with 705760 Only
SN 409701 - xxxx

744K FT4 108 1 Login To See Price
705291 Extensions, Deflector
Note: Use with 705290 Only
744K - 824K, & 744K ERA T3 102 1 Login To See Price
Special Application Attachments
705130 324K Guarding Package
Includes: Reinforcced Rear Fenders, Lift Cylinder Line Guards at Base, HD Cab Entry Step, Fuel Tank Guard, Mast Light Guards, Steering Cylinder Hose Guard and Bottom/Drive Shaft Guard
Note: 24% Discount

324K

500 32 Login To See Price
705038 Bumper and Grille Guard
Note: 24% Discount

324K

290 4 Login To See Price

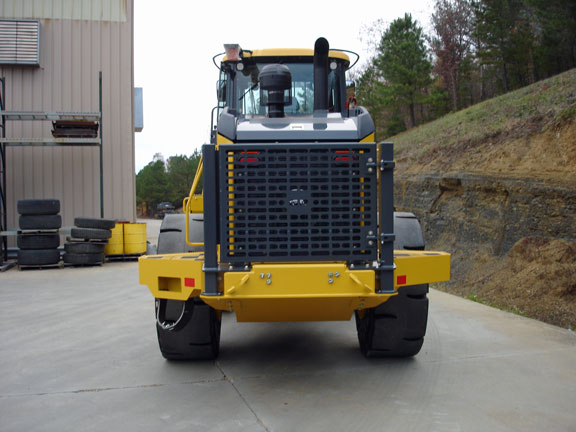

705178 Grille Guard
Note: Requires Rear Deflectors

644K - 724K, 544K - 724K IT4, ERA T3 & FT4

355 4 Login To See Price

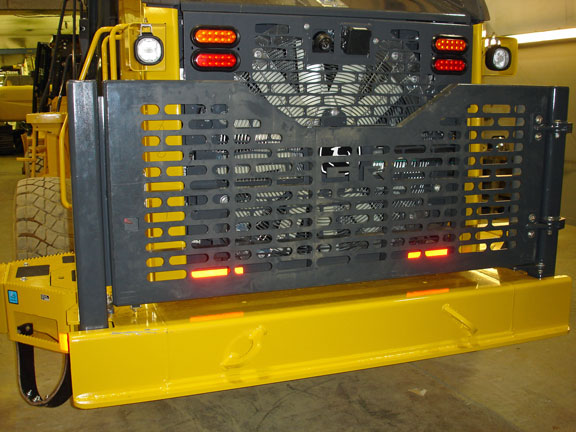

705765 Grille Guard
Note: Requires Rear Deflectors

744K & 824K FT4

886 12 Login To See Price
705528 Resistor Guard, Bottom 644K STSE Only 12 1 Login To See Price
705166 Strikers, Front 644K & 724K, IT4, ERA T3 & FT4 & 644K STSE 370 5 Login To See Price

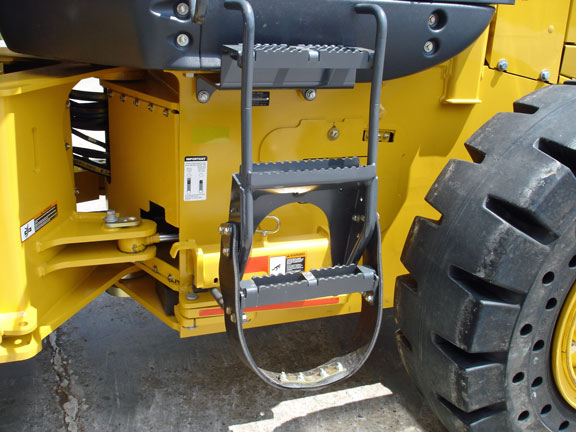

704859 Severe Service Cab Entry Step

444-544 J & K,

444K - 544K IT4 & 544K FT4

90 3 Login To See Price

Updated: March 2021
